NM500 Abrasion Resistance Steel Wear Plates 6.5' - 7.2' Width

                               NM450 NM500 Abrasion Resistance Steel Wear Plates 6.5'-7.2' Width Steel Plate

Product Description

Brief introduction of NM500 high strength wear-resistant steel plate
NM500 wear-resistant plate has fairly high mechanical strength; its mechanical properties are 3 to 5 times that of ordinary low-alloy steel plates; it can significantly improve the wear resistance of mechanical-related parts; thus improving the service life of machinery and reducing production costs; the surface of the product The hardness can reach 430~470HB: suitable for the processing and manufacturing of wear-resistant and wearing parts for Jiawang mines and various construction machinery
Structural steel plates are also commonly used as high-strength structural steels with a yield strength ≥ 850MPa; the yield is more than 950, and the tensile strength is above 1180.
NM500 size, shape, weight and tolerance
The size, shape, weight and allowable deviation of the steel plate shall comply with the provisions of GB/T 709.
Steel plates of other sizes, shapes, and allowable deviations can be supplied upon agreement between the supplier and the buyer.

Details

Chemical composition (%)

Mechanical properties

Packaging & Shipping

Strapped by steel belt or customized,deliver by container.
Container details:
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High), about 24CBM,23MTS
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) ,about 54CBM,27MTS
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High), about 54CBM,27MTS
20feet container load 25tons coils whose length is under 5.8m
40feet container load 25tons coils whose length is under 11.8m

Machining Center

In 2012, we had become primary sales agent for wear plate of Laiwu Steel Group , xingcheng steel group and xinyu steel group, ; primary sales agent for stainless steel of TISCO,JISCO,BAOSTEEL. After years of steel international trade, we gain the customers' trust and good reputation. In 2019, In order to meet the processing request of more customers, we have added three new machining center divisions, first one is 5000W laser machining center, which can cut and bend according to customer's size, sandblasting machining center, painting processing center, With high quality products and top after-sales service, we have won trust and support of customers from all over theworld. Our steel products have been exported to 80 countries and areas: Chile, Peru, Russia, Mongolia, Philippines, Egypt, SaudiArabia, India, United States, Canada Australia and so on.

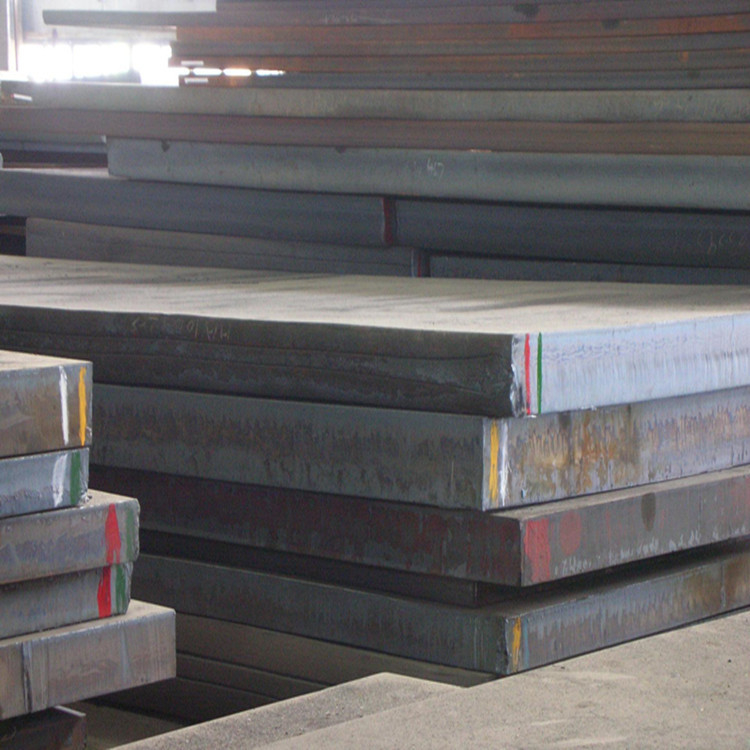

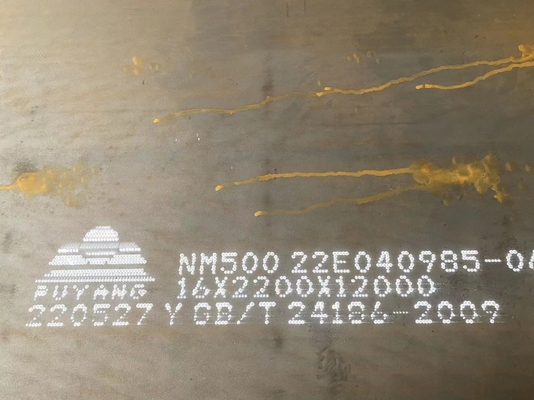

Product Photos

Applications

1) Thermal power plants: medium-speed coal mill barrel lining, fan impeller socket, dust collector inlet flue, ash slag conduit, bucket turbine lining, separator connecting pipe, coal crusher lining, coal hopper and crushing Machine liner, burner burner, coal drop hopper and funnel liner, air preheater support tile, separator guide vane. The above-mentioned parts do not have too high requirements on the hardness and wear resistance of wear-resistant steel plates, and can use wear-resistant steel plates made of NM360/400 with a thickness of 6-10mm.
2) Coal yard: feeding chute and hopper lining, hopper lining, fan blade, pusher bottom plate, cyclone dust collector, coke guide lining plate, ball mill lining, drill bit stabilizer, screw feeder bell and base seat, kneader bucket lining, ring feeder, dump truck floor. The working environment of the coal yard is harsh, and there are certain requirements for the corrosion resistance and wear resistance of the wear-resistant steel plate.
3) Cement plant: chute lining, end bushing, cyclone dust collector, separator blades and guide vanes, fan blades and inner lining, recycling bucket lining, screw conveyor bottom plate, piping components, frit cooling pan Lining, trough lining. These parts also need wear-resistant steel plates with better wear resistance and corrosion resistance, which can be made of NM360/400 wear-resistant steel plates with a thickness of 8-30mmd.
4) Loading machinery: unloading mill chain plate, hopper lining plate, grab blade plate, automatic dump truck tipper plate, dump truck body. This requires wear-resistant steel plates with wear-resistant strength and hardness. It is recommended to use wear-resistant steel plates made of NM500 and thickness of 25-45MM.
