Alloy Steel Plate Mn13 High Manganese Wear Resistant Plate 6mm-500mm

I'm Online Chat Now

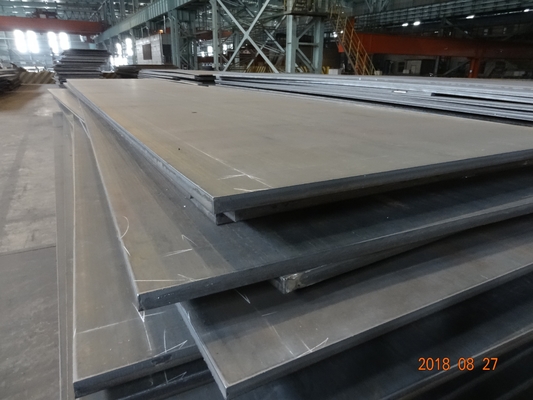

Alloy Steel Plate Mn13 High Manganese Wear Resistant Plate 6mm-500mm

Alloy Steel Plate Mn13 High Manganese Wear Resistant Plate 6mm-500mm
Alloy Steel Plate Mn13 High Manganese Wear Resistant Plate 6mm-500mm Alloy Steel Plate Mn13 High Manganese Wear Resistant Plate 6mm-500mm Alloy Steel Plate Mn13 High Manganese Wear Resistant Plate 6mm-500mm Alloy Steel Plate Mn13 High Manganese Wear Resistant Plate 6mm-500mm Alloy Steel Plate Mn13 High Manganese Wear Resistant Plate 6mm-500mm Alloy Steel Plate Mn13 High Manganese Wear Resistant Plate 6mm-500mm

Large Image :  Alloy Steel Plate Mn13 High Manganese Wear Resistant Plate 6mm-500mm

Product Details:
Place of Origin: China
Brand Name: Kai Steel
Model Number: NM400 NM450 NM500
Payment & Shipping Terms:
Minimum Order Quantity: 3 tons
Price: 1100
Packaging Details: metal belt
Delivery Time: 5-7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20000

Alloy Steel Plate Mn13 High Manganese Wear Resistant Plate 6mm-500mm

Description
Material: Nm360, Nm400, Nm500, Nm550, Mn13 Applications: Mining, Coal, Environmental, Hoister
Special Use: Cutting Tools, Measuring Tools, Cutters In Common Steel, Wear Resistant Steel HS Code: 7208900000
High Light:

Kai Steel High Manganese wear resistant plate

,

Kai Steel Mn13 wear resistant plate

,

Kai Steel 500mm manganese wear plate

Laiwu steel alloy steel plate mn13 high manganese wear plate price per kg

SPECIFICATIONS FOR Wear Resistant Steel Plate/Sheet
Product Name
Laiwu steel alloy steel plate mn13 high manganese wear plate price per kg
Standard
AISI,ASTM, EN, BS, GB, DIN, JIS
Thickness
6mm-500mm
Width
0.3m-3m
Length
2m-12m,or as to requirement
Materials Grade
NM360,NM360L,NM400,NM400L,NM400A,NM450,NM450L,NM450A,NM500A.NM550,NM600.
Inspection
ISO,BV,SGS,MTC
Packing
Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Supply Ability
250000 metric tons/Year
MOQ
5 metric ton,sample order accepted
Shipment time
Within 7-10 workdays after receiving deposit or L/C
Payments
T/T,LC
Chemical Content
Steel/Grade
C
Si
Mn
P
S
AL
Cr+Ni+Mo
Nb+V+Ti
NM360/AR360
0.10-0.30
0.20-0.40
1.00-2.00
≤0.015
≤0.003
≥0.20
<0.6




Trace Amount
NM400/AR400
0.10-0.40
0.20-0.40
1.00-2.00
≤0.015
≤0.003
≥0.20
<0.9
NM450/AR450
0.10-0.40
0.20-0.40
1.00-2.00
≤0.015
≤0.003
≥0.20
<1.2
NM500/AR500
0.10-0.40
0.20-0.45
1.00-2.00
≤0.015
≤0.003
≥0.20
<1.5
NM550/AR550
0.10-0.50
0.20-0.45
1.00-1.50
≤0.015
≤0.003
≥0.20
<2.0
NM600/AR600
0.10-0.50
0.20-0.45
1.00-1.50
≤0.015
≤0.003
≥0.20
<2.5
Mechanical property

Grade
Tensile strength
Elongation
Hardness
-20℃ Impact energy
(Mpa)
(%)(min)
(HBW)
AKv/J (min)
NM360
≥1100
12
330-390
24
NM400
≥1200
10
370-430
24
NM450
≥1250
7
420-480
24
NM500


470(min)

NM550


530(min)

NM600


570(min)

Alloy Steel Plate Mn13 High Manganese Wear Resistant Plate 6mm-500mm 0
Alloy Steel Plate Mn13 High Manganese Wear Resistant Plate 6mm-500mm 1
Alloy Steel Plate Mn13 High Manganese Wear Resistant Plate 6mm-500mm 2
Packing & Delivery
Kunda Steel usual packing by waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
1) 20ft container: 26tons (Can load 5.8M Max)
2) 40ft container: 26tons (Can load 11.8M Max)
3) more than 100tons:can pack by bulk vessel


Alloy Steel Plate Mn13 High Manganese Wear Resistant Plate 6mm-500mm 3



Application Show

NM360 NM400 AR400 manganese wear steel plate
It is widely used in mining mchinery,environmental protection machinery,cement machinery,engineering machinery etc due to it is high wear resistance.

(1) handling machinery and equipment: unloading mill chain plate, hopper liner, grab the edge plate, and automatic tipper tipping
plate;
(2) of construction machinery equipment: Cement pusher plate, concrete mixer liner, mixing building lining board. Dust
collector liner;
(3) metallurgical machinery equipment: iron ore sintering conveying elbow, iron ore sintering machine liner, scraper machine liner
Nm360 Nm400 Ar400 Manganese Wear Steel Plate
Nm360 Nm400 Ar400 Manganese Wear Steel Plate
(4) mining machinery and equipment: aggregate, stone crusher liner, blade; (5) Other mechanical equipment: sand barrel, blade, a
variety of port machinery wear part;
(6) of thermal power equipment: coal mill lining board Coal, coal conveying pipe, coal distributor frame, unloading equipment
lining plate;
(7) shot blasting machinery: shot blasting machine lining board.

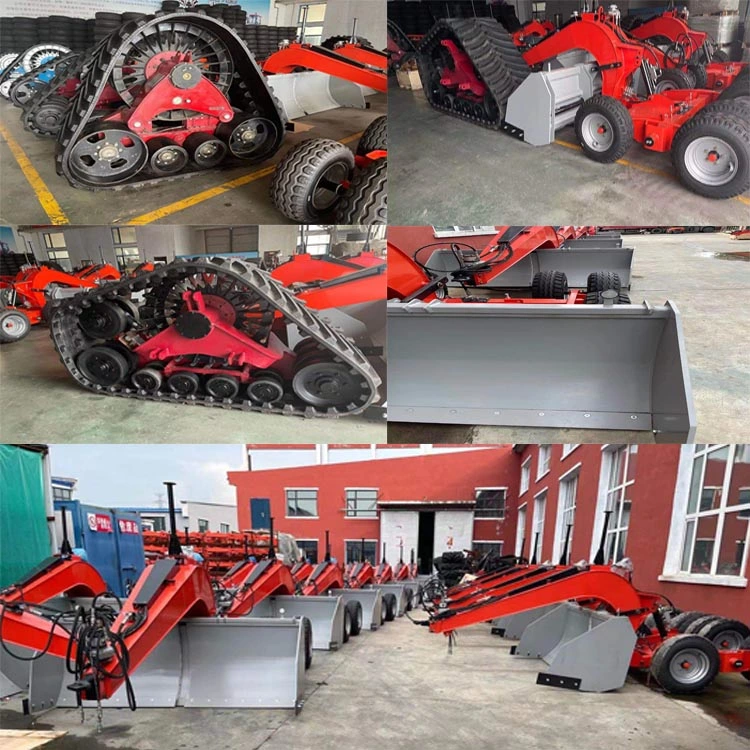

(8) engineering machinery and equipment: loaders, bulldozers, excavators.



Company Profile

Shandong Kai Steel IMP. & EXP. Co.,Ltd. is located in Liaocheng city, Shandong province. The Kai steel is specialized in producing most kinds of steel sheet and coil. Such as Stainless steel sheet/coil/pipe/bar, Carbon steel sheet/ coil/ pipe/bar. Carbon steel also contains ship building steel, wear resistante steel and weather resistant steel. We have worked on this kind of products for many years. All of our orders from customers are produced by our professional team. And the best quality products and service will be offered for you.

In addition, we have established a good relatioinship with our customer from Europe, South America,Asia and Africa. Our Annual export volume is about 250,000 metric tons. Kai steel has a good reputation at home and abroad. We really hope to based on a good business relationship with you. The sample order can be accepted. And we sincerely welcome you to visit our factory and company to negotiate business.

Nm360 Nm400 Ar400 Manganese Wear Steel Plate
Nm360 Nm400 Ar400 Manganese Wear Steel Plate
Nm360 Nm400 Ar400 Manganese Wear Steel Plate

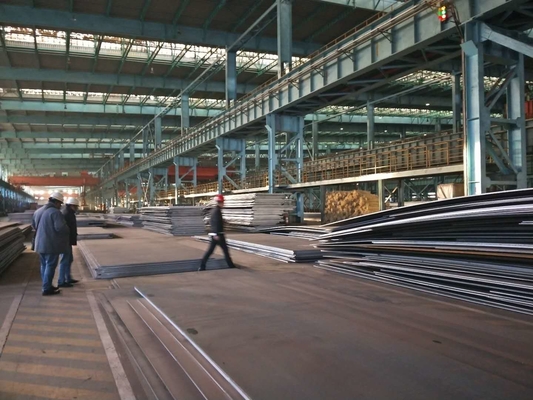

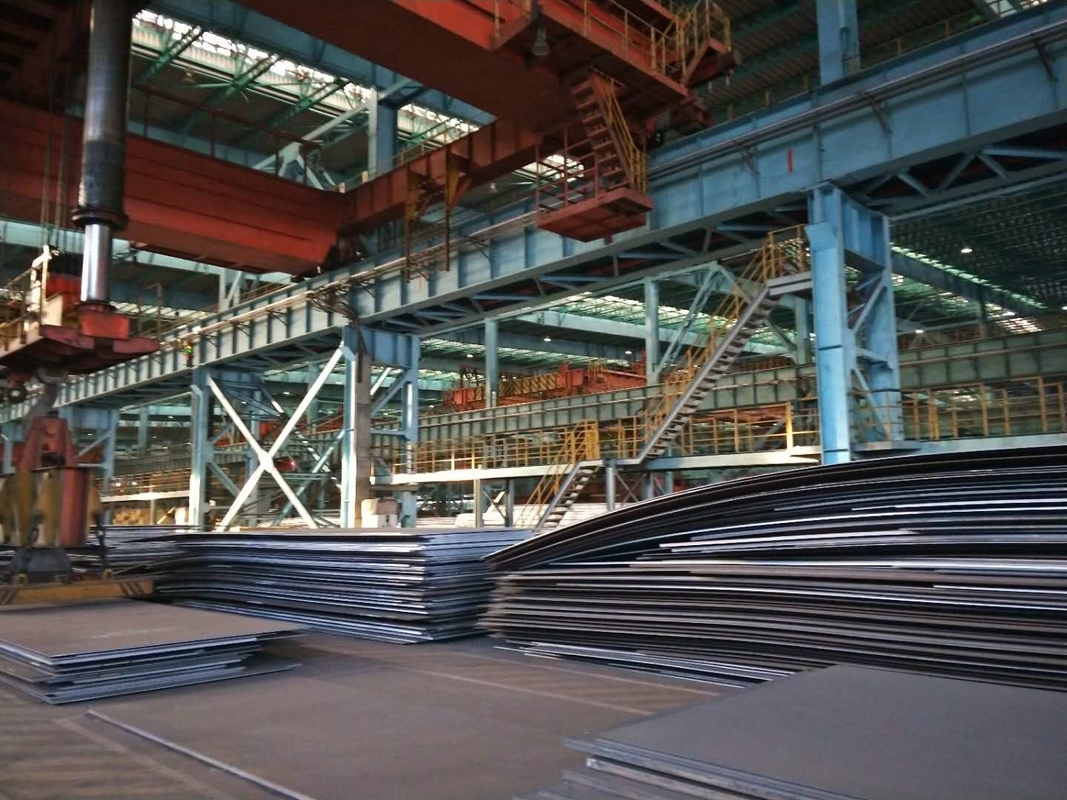

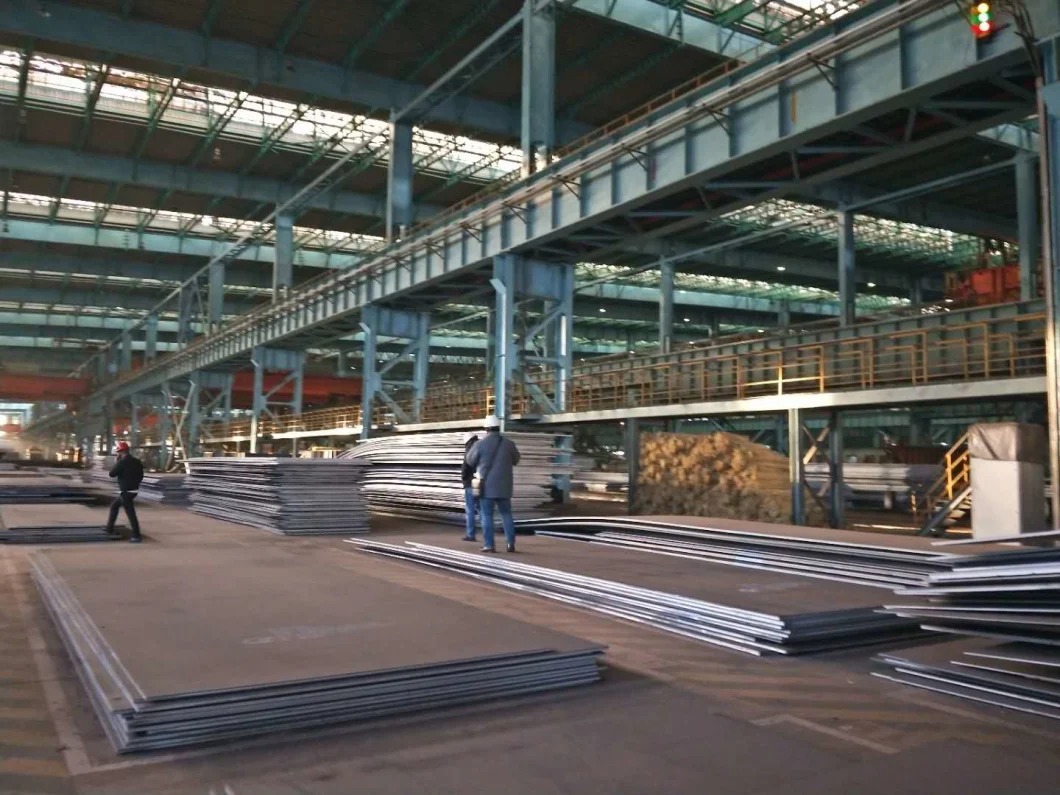

Warehouse Office Workshop

Our Advantages

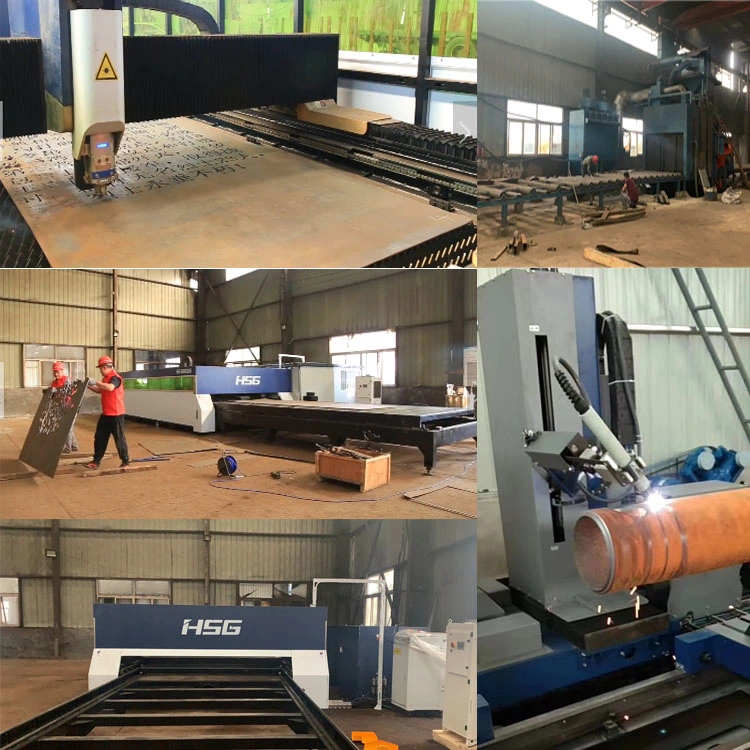

We have our own workshop, we can supply one stop service:

1. Blasting machine cleaning the steel surface,

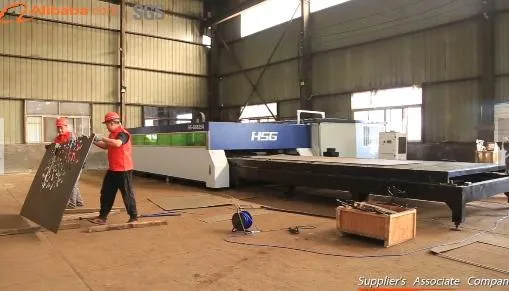

2. Fiber machine cutting the plate as the CAD drawings,
3. Bending machine,
4.Drill machine drill the holes.

Nm360 Nm400 Ar400 Manganese Wear Steel Plate
