Customized Abrasion Resistance Steel Wear Plates 20'- 40' Length NM450 NM500

                               Abrasion Resistance Steel Wear Plates 20'---40' Length Steel Plate NM400 NM450 NM500

Product Description

NM400 is a high-strength wear-resistant steel plate; the grade includes organization, use, and hardness, usually called
wear-resistant 400; NM stands for the first letter of wear-resistant; 400 represents the average Brinell hardness of the steel
plate. It is a higher level wear-resistant steel plate than NM360.

Details

Packaging & Shipping

Strapped by steel belt or customized,deliver by container.
Container details:
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High), about 24CBM,23MTS
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) ,about 54CBM,27MTS
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High), about 54CBM,27MTS
20feet container load 25tons coils whose length is under 5.8m
40feet container load 25tons coils whose length is under 11.8m

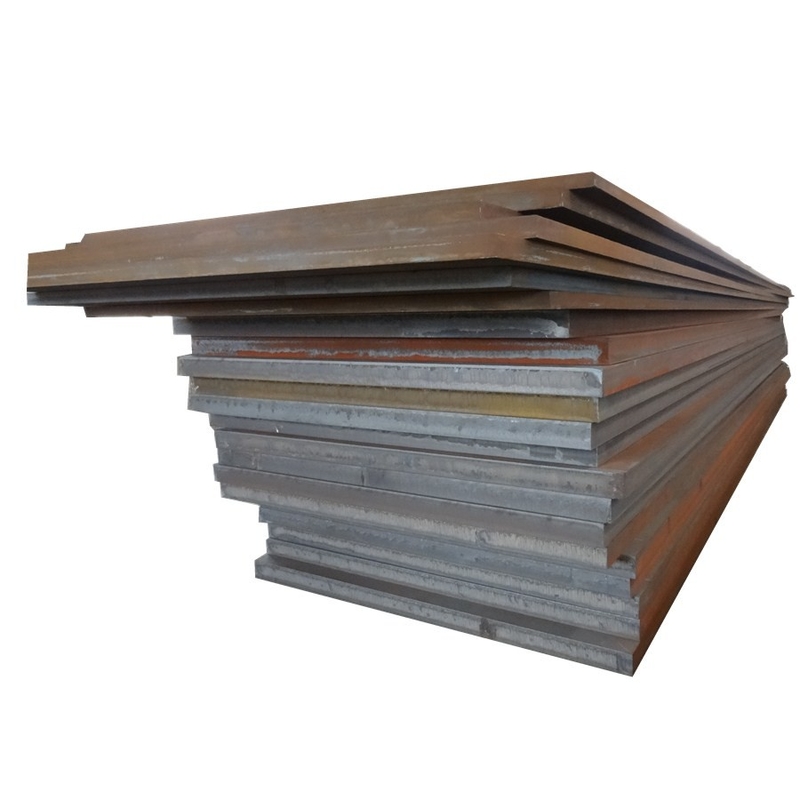

Product Photos

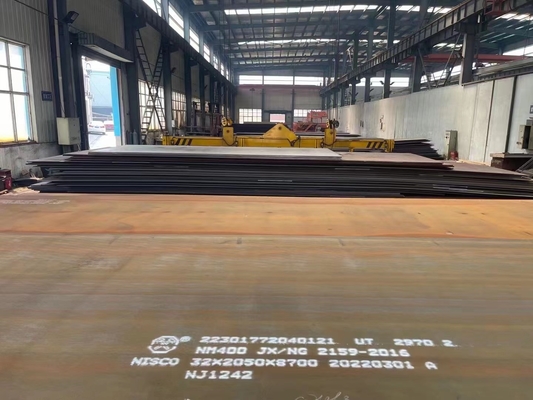

Machining Center

In 2012, we had become primary sales agent for wear plate of Laiwu Steel Group , xingcheng steel group and xinyu steel group, ; primary sales agent for stainless steel of TISCO,JISCO,BAOSTEEL. After years of steel international trade, we gain the customers' trust and good reputation. In 2019, In order to meet the processing request of more customers, we have added three new machining center divisions, first one is 5000W laser machining center, which can cut and bend according to customer's size, sandblasting machining center, painting processing center, With high quality products and top after-sales service, we have won trust and support of customers from all over theworld. Our steel products have been exported to 80 countries and areas: Chile, Peru, Russia, Mongolia, Philippines, Egypt, SaudiArabia, India, United States, Canada Australia and so on.

Applications

1) Thermal power plants: medium-speed coal mill barrel lining, fan impeller socket, dust collector inlet flue, ash slag conduit, bucket turbine lining, separator connecting pipe, coal crusher lining, coal hopper and crushing Machine liner, burner burner, coal drop hopper and funnel liner, air preheater support tile, separator guide vane. The above-mentioned parts do not have too high requirements on the hardness and wear resistance of wear-resistant steel plates, and can use wear-resistant steel plates made of NM360/400 with a thickness of 6-10mm.
2) Coal yard: feeding chute and hopper lining, hopper lining, fan blade, pusher bottom plate, cyclone dust collector, coke guide lining plate, ball mill lining, drill bit stabilizer, screw feeder bell and base seat, kneader bucket lining, ring feeder, dump truck floor. The working environment of the coal yard is harsh, and there are certain requirements for the corrosion resistance and wear resistance of the wear-resistant steel plate.
3) Cement plant: chute lining, end bushing, cyclone dust collector, separator blades and guide vanes, fan blades and inner lining, recycling bucket lining, screw conveyor bottom plate, piping components, frit cooling pan Lining, trough lining. These parts also need wear-resistant steel plates with better wear resistance and corrosion resistance, which can be made of NM360/400 wear-resistant steel plates with a thickness of 8-30mmd.
4) Loading machinery: unloading mill chain plate, hopper lining plate, grab blade plate, automatic dump truck tipper plate, dump truck body. This requires wear-resistant steel plates with wear-resistant strength and hardness. It is recommended to use wear-resistant steel plates made of NM500 and thickness of 25-45MM.

Company Profile

Shandong Kai Steel Import and Export Co., Ltd is located in Liaocheng city,west of Shandong province, it's about 300 Km in south of Beijing city ,and 100 Km in west of Jinan city , benefit from the convenient traffic condition,Liaocheng economy develops rapidly and formed the largest steel logistics centre in north of China. Kai Steel is a subsidiary of Lai Steel Group, founded in 2018 and engaged in production and sales of wear resistant steel plate,weathering steel plate,high strength carbon steel plate,stainless steel,aluminum,brass and sectional materials. Except the stock product, we also have our own factory and workshop,stainless steel welded pipe factory, have 24 lines to produce the welded pipe(round and rectangle pipe),out diameter and width : 5mm-610mm, thickness: 0.5mm-20mm. We have our own workshop, we can supply one stop service: 1. Blasting machine. 2. Fiber machine cutting machine. 3. Bending machine. 4. Drill holes machine.5. Fully automatic paint room. 6. Welded machine. We passed certificate ISO9001,ISO14000,OHSAS18001.As a member of China iron and steel association,we established long term friendly cooperation with famous domestic mill plants,such as Bao steel,Wu steel,An steel,Tai steel etc. As well as active pursues partnerships foreign company ,in order to meet customer requirement. With concept of 'Keep Improving,Win-win Cooperation',and executed by reliable quality and after sales service system,Kai steel gained good reputation from customers at home and abroad.We sincerely welcome you to come our company to negotiate business.
