Product Details:
|
| Name: | Bin Liner Alloyed Anti Wear Composite Steel Plate | Hardness: | 58-65 HRC |
|---|---|---|---|
| Surface Treatment: | Hardfacing, Clading | Length: | 3000/3400/3500mm, Or As Your Requirement |
| Technique: | Q+T | Application: | Scrapers, Conveyor Parts, Baffle Plates,construction Machinery |
| Surface: | Painting Or As Your Requiremnt | Width: | 1400/2100mm， Or As Your Requirement |
| Base Plate: | Q235/Q345 | ||
| High Light: | Anti Wear Composite Steel Plate,65 HRC Composite Steel Plate,Composite Steel Plate 2100mm |
||
| Material | High chromium carbide overlay wear plate |
| Thickness | 4+4 5+3 6+4 6+5 8+4 8+6 8+8 10+4 10+6 10+8 10+10 12+4 12+6 12+8 12+10 14+6 14+8 14+10 16+6 16+8 16+10 16+12, etc. Or as customized |
| Weldable Thickness | 3-20mm |
| Hardness |
HRC 52-62 Wear deposite 3mm: HRC 52-58, 4mm: HRC 56-60 Wear deposite 5mm: HRC 58-62, 6mm: HRC 58-62 Wear deposite 8mm: HRC 58-62, 10mm: HRC 60-62 Wear deposite 12mm: > 62 HRC |
|
HRC of 1st layer :52-58; HRC of 2nd layer: 58-62; HRC of Pure weld deposite: 62 |
|
| Surface Treatment | Hardfacing clading coated. |
| Technique | Advanced automatic self-shilded open arc welding |
| Chemical Composition |
Take 6+6 abrasion composite plate wear deposite for example: C : 4.3-4.8% Cr : 23-30% Mn : 0.8-1.1% Mo: 0.08-0.18 Ni:0.08-0.15, Other Metal elements : Micro |
| Base Plate | Q235B, All weldable steels, mostly structural steels. |
| Feature | High wear resistance 12-20 times higher than common plate 5-10 times than low alloy steel plate 2-3 times than high chromium cast iron plate |

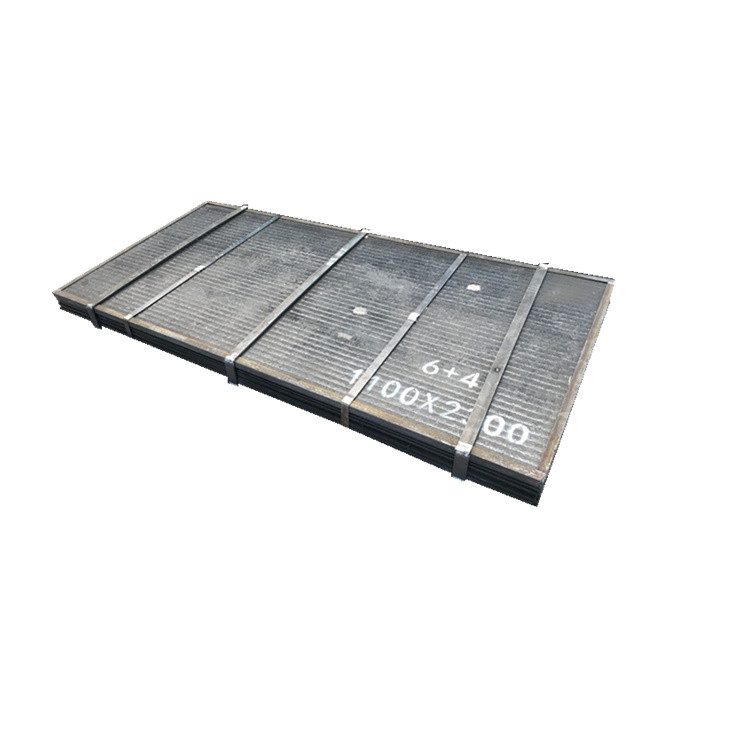

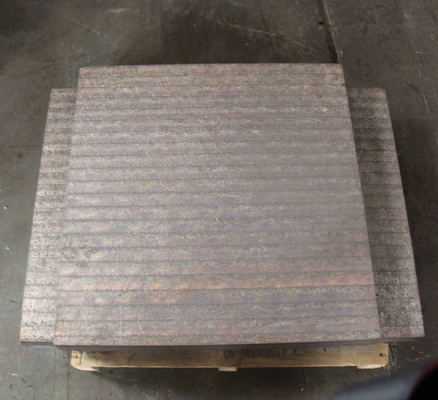

Product pictures
1. Electric power industry - fan blades, burner pipelines, feed chute and hopper liners, crusher parts, coal mill parts, ash discharge pipes, air handling systems and conveyors;
2. Iron and steel industry - hopper lining, grille, feeder and base, dump truck, hopper, pipeline, pump casing, crusher parts, slag trough, various chassis, vibrating screen;
3. Cement industry - impact disc, pipeline, pump casing, mill lining, crusher parts, slag trough, various chassis, vibrating screen;
4. Paper industry - cyclone lining, screw conveyor, feed trough and funnel, fan blade, conversion duct, transition elbow;
5. Mining industry - truck trough lining, hopper lining, feeding trough lining, crusher parts, cover plates, wear bars and wear plates;
6. Coal processing industry - troughs, hoppers, crusher parts and linings, coal pipelines, elbows, pump bodies.
1: Punched straight hole and countersunk head hole.
2: Back load welding bolts can be pre-processed bolts embedded in the wear-resistant composite steel plate on the substrate.
3: bending and winding shield wear - resistant composite steel plate can be cold processed into curved or tapered surface.
4: welding shield wear - resistant composite steel plate can be welded, assembled into a variety of wear - resistant parts.
Packing method:
1) Bundles packing with steel strip.
2) As customer request
Delivery :
Loading Port: Qingdao, Tianjin or your request.
Delivery time: Normal size, 7-10 days
20ft container load 26tons, length ≤5.8m
40ft container load 26tons, length ≤11.8m
If the weight more than 100tons, there is another way to transport by bulk.
