Product description

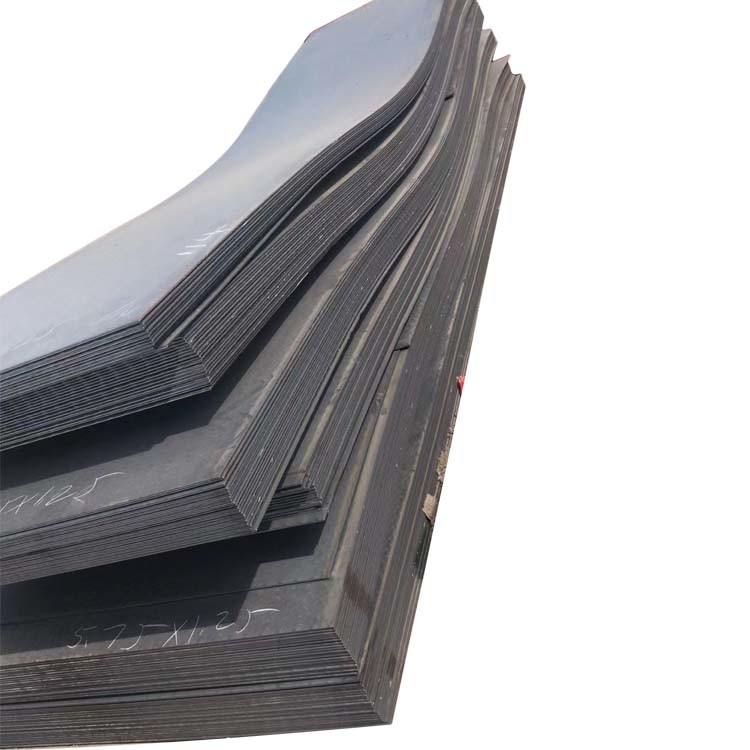

AH36 dh36 eh36 shipbuilding steel plate price boat marine steel plate
Marine steel plate refers to the hot rolled steel plate produced according to the classification society construction code for the manufacture of ship hull structure.

Details show

Shipbuilding Steel Plate are divided into general strength structural steels and high strength structural steels according to their minimum yield points. Ship plate refers to the hot rolled steel plate produced according to the classification society construction code for the manufacture of ship structure. The general strength structural steels of China Classification Society are divided into four quality grades (CCSA, CCSB, CCSD, CCSE) : A, B, D, E; China Classification Society specification standard high strength structural steel for three strength classes, four quality classes

.

Different materials of ship board tensile strength, yield strength is different. Grades A,B,D, and E represent the impact work at different temperatures. Here is the Marine steel grade performance table reference, you can choose the appropriate material.

• High-strength hull structural steel is divided into strength grades according to its minimum yield strength, and each strength grade is divided into A, D, E, F4 grades according to its impact toughness.
• The yield strength of A32, D32, E32 and F32 is not less than 315N/mm^2, and the tensile strength is 440~570N/mm^2. A, D, E and F respectively indicate that they can be at 0° and -20° respectively. Impact toughness that can be achieved at -40°, -60°
• The yield strength of A36, D36, E36 and F36 is not less than 355N/mm^2, and the tensile strength is 490~620N/mm^2. A, D, E and F respectively indicate that they can be at 0° and -20° respectively. Impact toughness that can be achieved at -40°, -60°
• The yield strength of A40, D40, E40 and F40 is not less than 390N/mm^2, and the tensile strength is 510~660N/mm^2. A, D, E and F respectively indicate that they can be at 0° and -20° respectively. Impact toughness that can be achieved at -40° to -60°
• The specific properties of the material are as follows:

Classification Society Certification

Our ship steel materials have passed the following classification society certification, if you need, we can also provide you with the classification society certificate.

Related Product

In addition to shipbuilding steel,our the other products have :Wear Steel Plate,Corten Steel,Carbon steel Plate/Coil,Lead material and  Stainless Steel Material.Following is product pictures for your reference:
